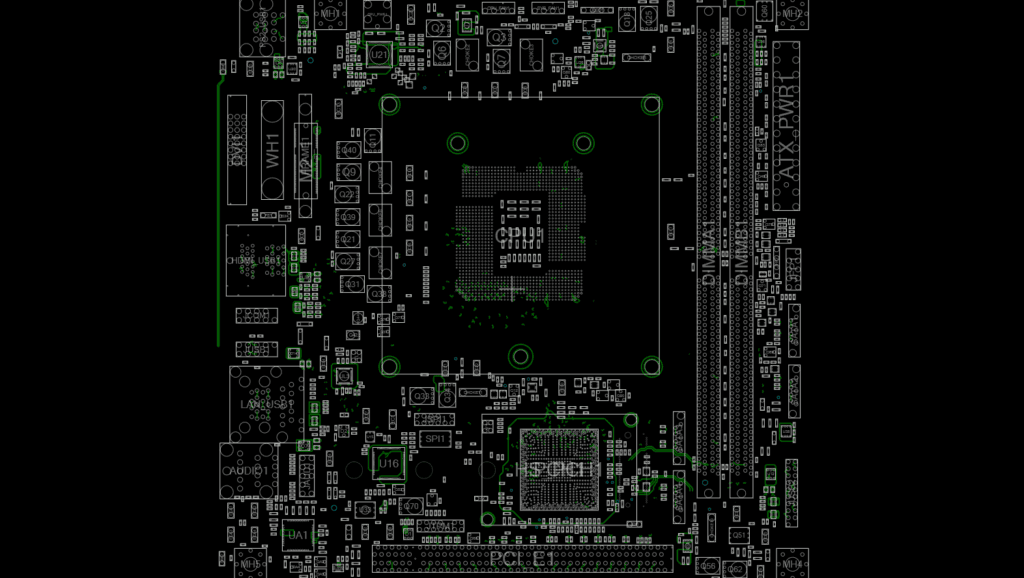

MSI B250I GAMING PRO AC (MS-7A67) (Rev2.0) Boardview

Sharing schematics for the MSI B250I GAMING PRO AC (MS-7A67) helps techs diagnose issues faster. Boardview files act as digital blueprints, revealing component layouts. Perfect for repairs, mods, or learning PCB design!

Motherboard Model & Key Features

The MSI B250I GAMING PRO AC (MS-7A67) Rev2.0 is a compact powerhouse. Here’s why it stands out:

• Socket LGA 1151 for Intel 6th/7th Gen CPUs.
• DDR4 Boost supports up to 64GB RAM (2400MHz).
• Dual M.2 slots for NVMe or SATA storage.
• 802.11ac Wi-Fi + Bluetooth 4.2 built-in.
• RGB LED lighting with Mystic Light Sync.
• USB 3.1 Gen2 Type-C for high-speed transfers.

BIOS & FIRMWARE DOWNLOAD: MS-7A67

Why These Schematics Matter (A Pro’s Take)

Let me be honest—I’ve used these schematics myself. They’re a lifesaver. When a client’s board had a dead USB port, the boardview pinpointed the faulty resistor in minutes. No guesswork. No wasted time. If you’re serious about repair work, this file is gold. Trust me, having this on hand turns complex troubleshooting into a walk in the park.

Open the .bv file with OpenBoardView or Altium 365.

Legal Disclaimer

MSI does not publicly release schematics or boardview files. These resources are shared to aid responsible repair efforts. Always comply with local laws and avoid unauthorized distribution.

Struggling with a stubborn repair? Share your story below! 👇
