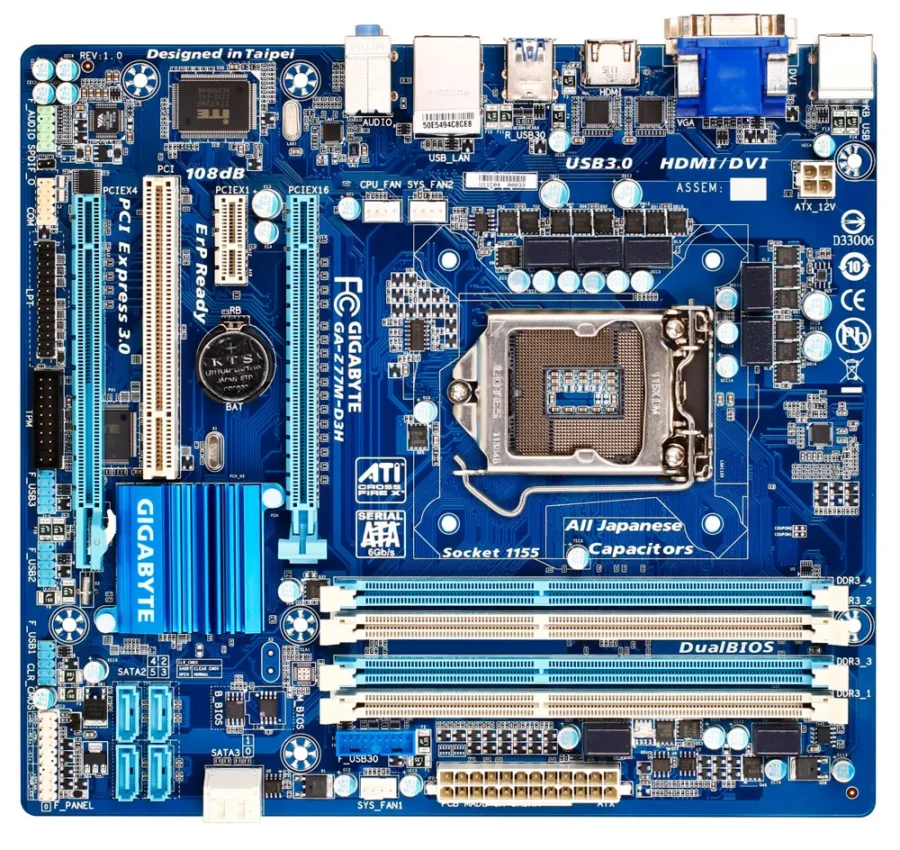

GIGABYTE GA-Z77M-D3H (Rev 1.0) Schematic

GIGABYTE GA-Z77M-D3H (Rev 1.0) Schematic files free download

The GIGABYTE GA-Z77M-D3H (Rev 1.0) is part of the Z77 series motherboards, designed to harness the outstanding performance of 3rd generation Intel® Core™ processors. Let’s kick off with a brief overview:

• Chipset: The motherboard features the Intel® Z77 chipset, supporting 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket).
• GIGABYTE 3D BIOS: This revolutionary application provides two exclusive modes of interaction, making BIOS configuration a user-friendly experience.
• PCI Express Gen 3.0 Support: Ensures high-speed data transfer for graphics cards and other peripherals.
• Multi-GPU Support: The GA-Z77M-D3H (Rev 1.0) supports 2-way CrossFireX™ for enhanced gaming performance.
• High-Quality Audio: With a 108dB SNR HD audio solution, you’ll enjoy crystal-clear sound.
• GIGABYTE 333™ Onboard Acceleration: USB 3.0, SATA 3.0, and 3x USB Power for faster data transfer.

Motherboard Features: GIGABYTE GA-Z77M-D3H

1. Compact Form Factor: The micro-ATX design makes it ideal for smaller cases without compromising performance.
2. Robust Power Delivery: The GA-Z77M-D3H (Rev 1.0) ensures stable power supply to your components.
3. Dual UEFI BIOS: GIGABYTE’s 3D BIOS provides a streamlined interface for both novice users and overclockers.
4. Flexible Connectivity: HDMI, DVI, and RGB ports allow versatile display options.
5. Onboard Acceleration: USB 3.0 and SATA 3.0 for lightning-fast data transfer.
6. Humidity Protection: The Glass Fabric PCB design guards against electrical shorts due to humidity.
7. Electrostatic Protection: High ESD Resistance ICs protect against electrostatic discharge.

BIOS & FIRMWARE DOWNLOAD:  GA-Z77M-D3H (rev. 1.0)

Open the .CAD file with OpenBoardView or Altium 365.

Open the PDF file whith Acrobat Reader

Legal Disclaimer

Manufacturer does not publicly release schematics or boardview files. These resources are shared to aid responsible repair efforts. Always comply with local laws and avoid unauthorized distribution. The information provided here is based on available specifications and features at the time of writing. Always check the official product documentation for the most up-to-date details. Use these schematics at your own risk.
