GIGABYTE GA-H61M-S2P-R3 (Rev 3.01) Schematic

GIGABYTE GA-H61M-S2P-R3 (Rev 3.01) Schematic files free download

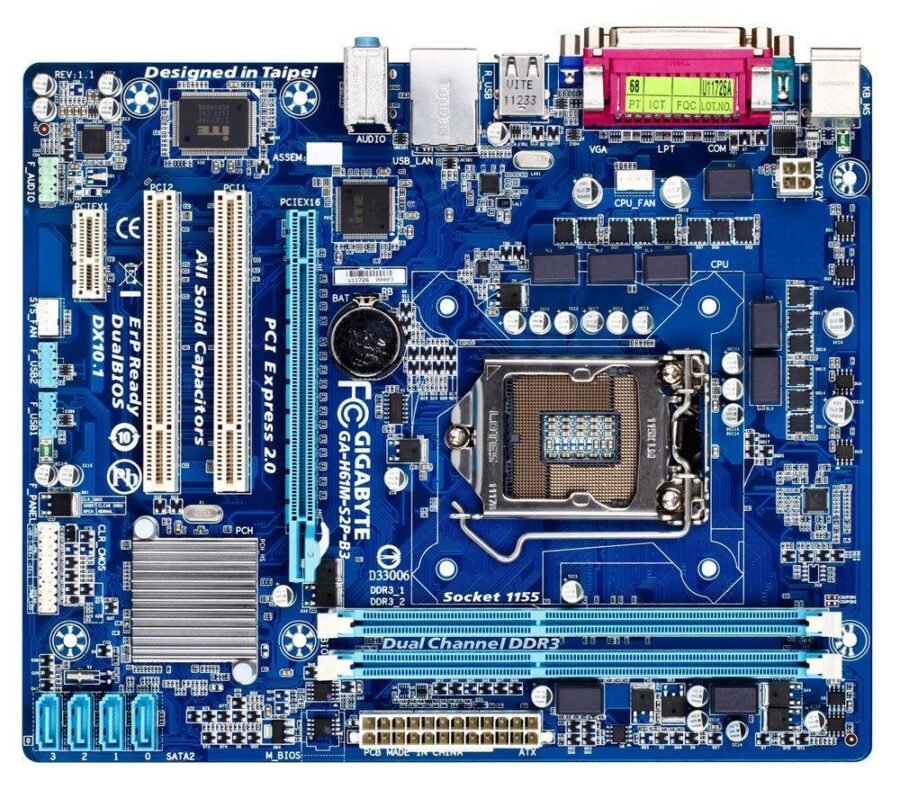

Motherboard Features: GA-H61M-S2P-B3

• Ultra Durable 4 Classic Design: GIGABYTE’s commitment to quality shines through with solid capacitors and low RDS (on) MOSFETs, ensuring stability and longevity.
• Humidity Protection: The new Glass Fabric PCB design guards against electrical shorts caused by humidity, enhancing durability.
• Electrostatic Protection: High ESD Resistance ICs shield the motherboard from electrostatic discharge.
• Power Failure Protection: DualBIOS™ technology prevents permanent damage during BIOS updates.
• High Temperature Resilience: All Solid Caps and Low RDS (on) MOSFETs withstand higher temperatures, offering a 50,000-hour component lifespan.
• PCI Express Gen.3 Support: Ready for the latest graphics cards, providing maximum data bandwidth.

BIOS & FIRMWARE DOWNLOAD: GA-H61M-S2P-B3

Why Wait?

Grab the schematic, fire up your soldering iron, and turn that “dead” board into a victory. Tech repair is 10% mystery, 90% having the right map. 🔍

Open the .CAD file with OpenBoardView or Altium 365.

Open the PDF file whith Acrobat Reader

Legal Disclaimer

Manufacturer does not publicly release schematics or boardview files. These resources are shared to aid responsible repair efforts. Always comply with local laws and avoid unauthorized distribution. The information provided here is based on available specifications and features at the time of writing. Always check the official product documentation for the most up-to-date details. Use these schematics at your own risk.

Struggling with a stubborn repair? Share your story below! 👇
