BIOSTAR IP43A-A7S (Rev 6.0) Schematic

BIOSTAR IP43A-A7S (Rev 6.0) Schematic files free download

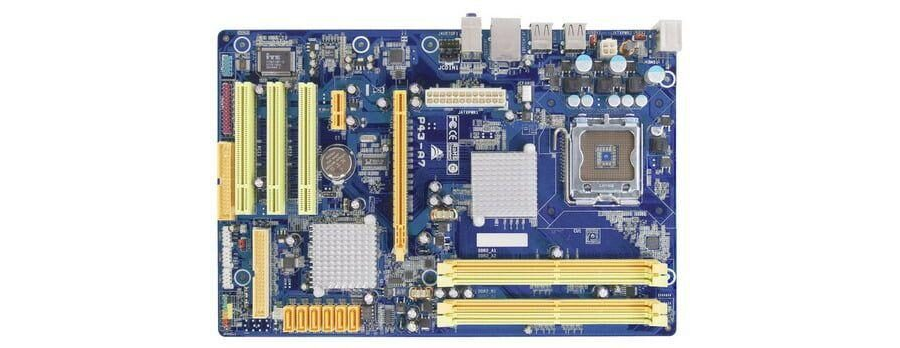

Motehrboard: BIOSTAR IP43A-A7S REV. 6.0

• Socket LGA 775
• Supports Intel Core 2 Quad/Core 2 Duo/Celeron Dual Core/Celeron 400 Series Processor
• Supports FSB 800/1066/1333/1600(OC)MHz
• Support Intel Hyper-Threading Technology
• Supports BIO-Remote 2 Technology
• Supports Charger Booster Technology

Model: IP43A-A7S (REV. 6.0)

Socket: Intel LGA-775

Chipset: Intel P43 / Intel ICH10

BIOS & FIRMWARE: IP43A-A7S

Open the .CAD file with OpenBoardView or Altium 365.

Open the PDF file whith Acrobat Reader

Legal Disclaimer

Manufacturer does not publicly release schematics or boardview files. These resources are shared to aid responsible repair efforts. Always comply with local laws and avoid unauthorized distribution. The information provided here is based on available specifications and features at the time of writing. Always check the official product documentation for the most up-to-date details. Use these schematics at your own risk.
