BIOSTAR B85MG (Rev 6.0) Schematic

BIOSTAR B85MG (Rev 6.0) Schematic files free download

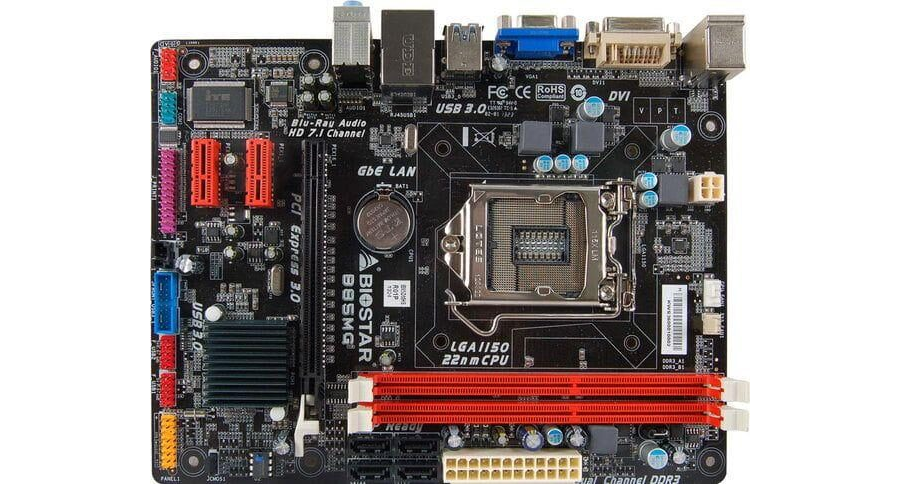

Motehrboard: BIOSTAR B85MG (rev 6.0)

• Support the Intel 4th generation Core i7 and Core i5 processors in the 1150 package
• Intel B85 single chip architecture
• Support 2-DIMM DDR3-1600/1333 up to 16G maximum capacity
• Intel SBA(Small Business Advantage) Technology
• Intel Rapid Start Technology
• Intel Smart Connect Technology

Model: B85MG (rev 6.0)

Socket: Intel LGA-1150

Chipset: Intel®B85

BIOS & FIRMWARE: B85MG

Open the .CAD file with OpenBoardView or Altium 365.

Open the PDF file whith Acrobat Reader

Legal Disclaimer

Manufacturer does not publicly release schematics or boardview files. These resources are shared to aid responsible repair efforts. Always comply with local laws and avoid unauthorized distribution. The information provided here is based on available specifications and features at the time of writing. Always check the official product documentation for the most up-to-date details. Use these schematics at your own risk.
