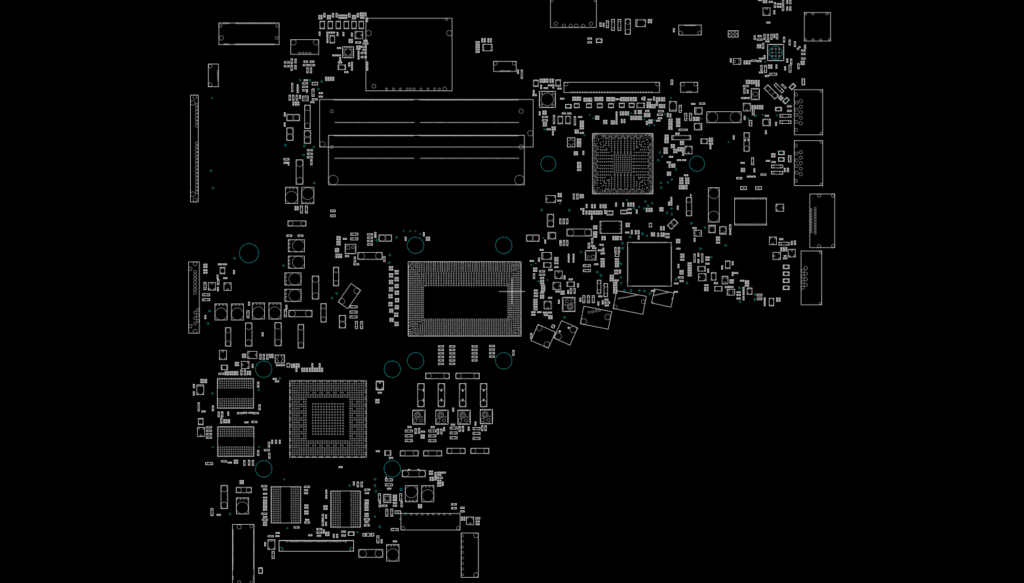

ASUS RoG Strix GL553VW (Rev 2.0) BOARDVIEW

ASUS RoG Strix GL553VW (Rev 2.0) BOARDVIEW files free download

Specs of ASUS RoG Strix GL553VW

Processor: Intel Core i7-6700HQ

Graphics: NVIDIA GeForce GTX 960M

Display: 15.6-inch FHD (1920 x 1080) IPS

Memory: Up to 16GB DDR4

Storage: Up to 1TB HDD + 128GB SSD

Battery: 4-cell, 48Wh Li-ion

Operating System: Windows 10 Home

Connectivity: Wi-Fi 802.11ac, Bluetooth 4.0

Ports: 1 x USB 3.1 Type-C, 2 x USB 3.0, 1 x USB 2.0, 1 x HDMI, 1 x RJ-45, 1 x headphone/microphone combo jack

The schematic files are available in FZ format. You can access them using any CAD software like OpenBoardview. Ensure you have the latest version of the software for the best experience.

Legal Disclaimer

Manufacturer does not publicly release schematics or boardview files. These resources are shared to aid responsible repair efforts. Always comply with local laws and avoid unauthorized distribution. The information provided here is based on available specifications and features at the time of writing. Always check the official product documentation for the most up-to-date details. Use these schematics at your own risk.
