ASROCK H81M-G (Rev 1.01) Boardview

ASROCK H81M-G (Rev 1.01) Boardview files free download

ASROCK-H81M-G-REV-1.01-70-MXGXH0-A02-BOARDVIEW

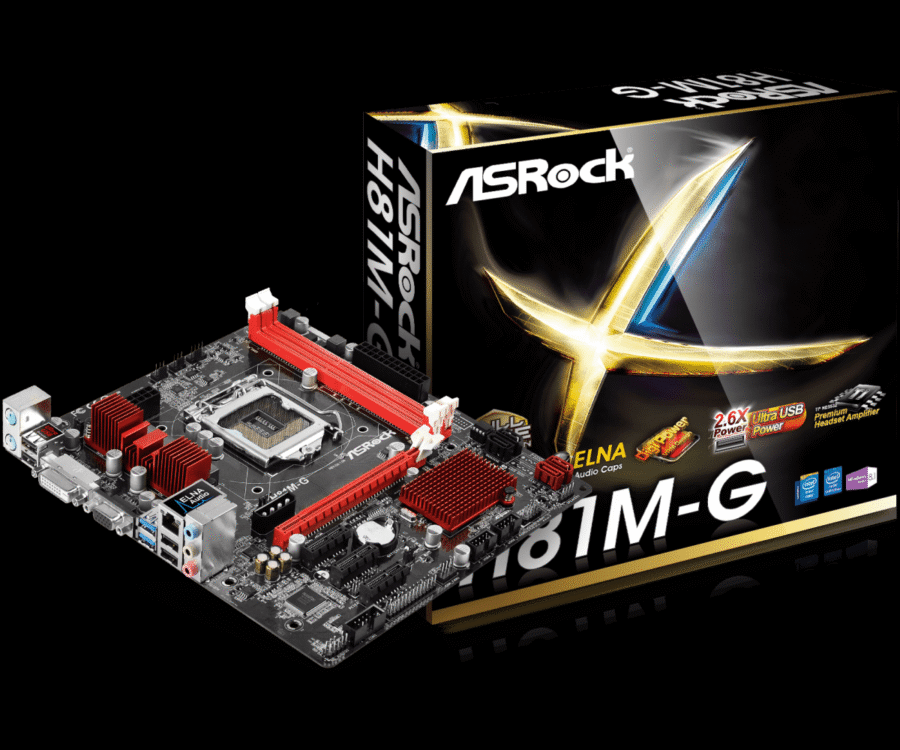

Motehrboard: ASROCK H81M-G (rev 1.01)

• Supports New 4^th and 4^th Generation Intel^® Xeon^® / Core™ i7 / i5 / i3 / Pentium^® / Celeron^® Processors (Socket 1150)
• Digi Power, 4 Power Phase design
• Supports Dual Channel DDR3/DDR3L 1600
• 1 PCIe 2.0 x16, 3 PCIe 2.0 x1
• Graphics Output Options : DVI-D, D-Sub
• Realtek Gigabit LAN
• 5.1 CH HD Audio (Realtek ALC662 Audio Codec), ELNA Audio Caps
• TI^® NE5532 Premium Headset Amplifier
• 2 SATA3, 2 SATA2, 2 USB 3.1 Gen1, 8 USB 2.0 (4 Front, 4 Rear)
• 1 Print Port Header, 1 COM Port Header
• Supports ASRock Ultra USB Power, Full Spike Protection, APP Shop, FAN-Tastic Tuning,USB Key

Model: H81M-G (rev 1.01)

Socket: Intel LGA-1150

Chipset: Intel®H81

BIOS & FIRMWARE: H81M-G

Open the .CAD file with OpenBoardView or Altium 365.

Open the PDF file whith Acrobat Reader

Legal Disclaimer

Manufacturer does not publicly release schematics or boardview files. These resources are shared to aid responsible repair efforts. Always comply with local laws and avoid unauthorized distribution. The information provided here is based on available specifications and features at the time of writing. Always check the official product documentation for the most up-to-date details. Use these schematics at your own risk.
