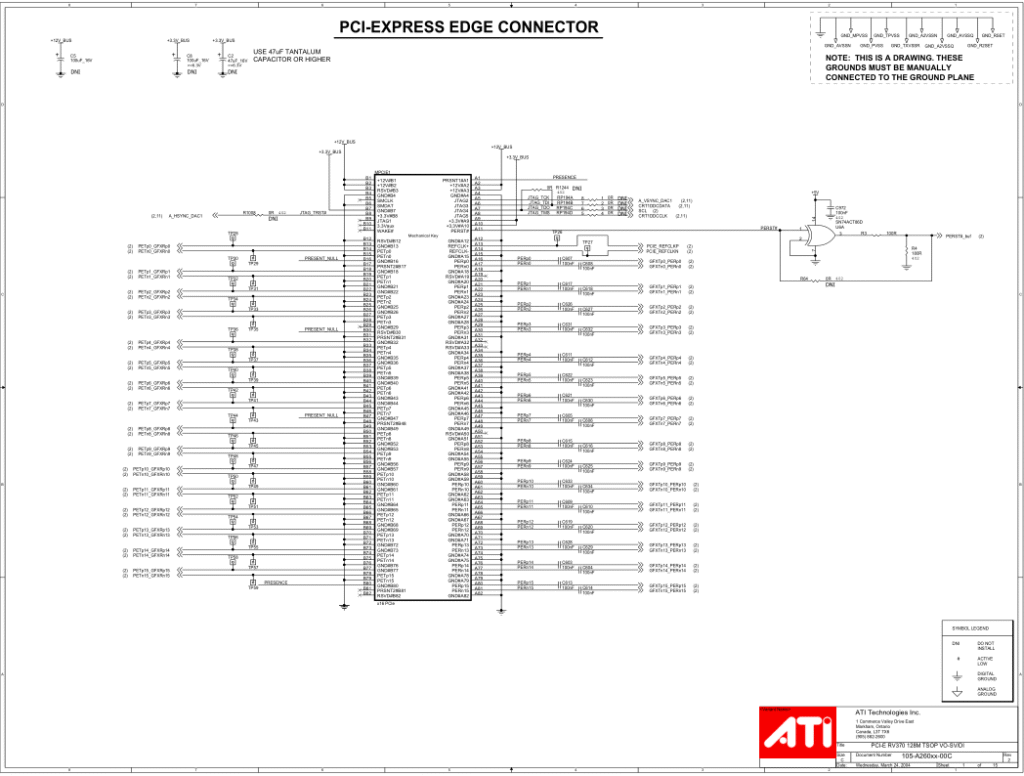

AMD Radeon X550 (105-A260xx-00C 2) Schematic files free download

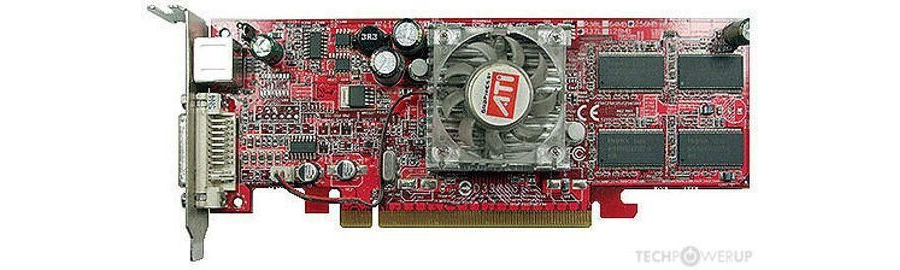

Graphics card model
The AMD Radeon X550 is a leading model in the Radeon series, known for its reliability and performance in various computing tasks. Below we break down its main characteristics:
- GPU core clock speed: 400 MHz
- Memory: 256 MB DDR2
- Memory interface: 128 bits
- Outputs: VGA, DVI-I and S-Video
- Bus interface: PCI Express x16
Why Wait?
Grab the schematic, fire up your soldering iron, and turn that “dead” board into a victory. Tech repair is 10% mystery, 90% having the right map. 🔍
Open the .CAD file with OpenBoardView or Altium 365.
Open the PDF file whith Acrobat Reader
Related links
Here are some additional resources that you may find helpful:
Legal Disclaimer
Manufacturer does not publicly release schematics or boardview files. These resources are shared to aid responsible repair efforts. Always comply with local laws and avoid unauthorized distribution. The information provided here is based on available specifications and features at the time of writing. Always check the official product documentation for the most up-to-date details. Use these schematics at your own risk.
Struggling with a stubborn repair? Share your story below! 👇
